Power Conditioning
Staco Energy

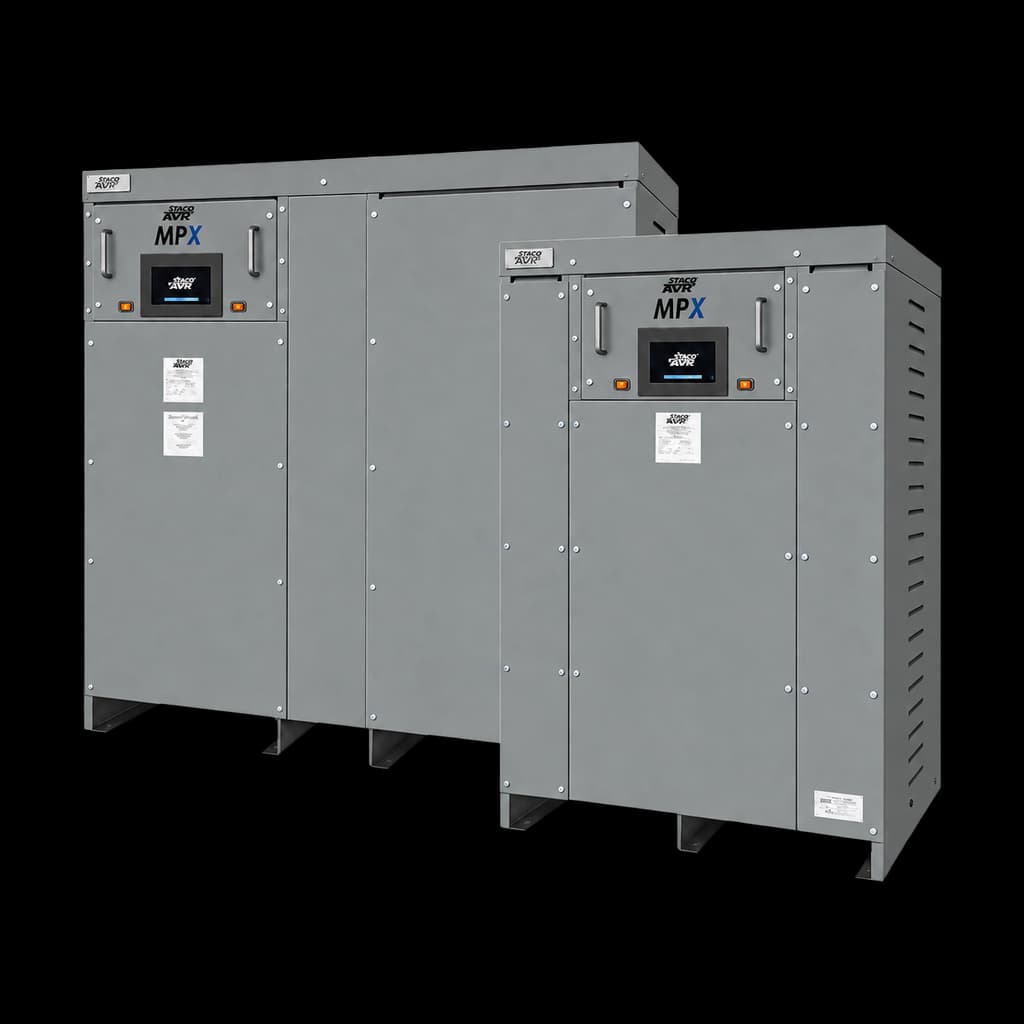

StacoAVR
StacoAVR is an electromechanical voltage regulator for installations that need continuous correction without electronic conversion in the power path. Standard models cover 120 to 600 V and ratings up to 2,000 kVA. A microprocessor controls the series-regulation variable transformer, producing full correction in 3 to 30 seconds and maintaining output within ±1% for standard input variations from +10% to −20%.
Product details
Key features
- Manual raise and lower control provides redundant regulation
- Modular construction supports project-specific configurations
- Individual coil protection limits cascading coil failures
- Front-panel access supports installation and service
Key specs
- Topology
- Electromechanical series-regulation variable transformer
- Capacity
- Up to 2,000 kVA
- Voltage
- 120–600 V
- Standard input range
- +10% / −20% of nominal
- Output regulation
- ±1% or better
- Full correction time
- 3–30 seconds
- Power factor compatibility
- Capacitive, resistive, and inductive loads
- Options
- Noise attenuation and SPD filters
Start with this product.
Send the load, location, timeline, and drawing package. APG will use this product to route the quote request.
