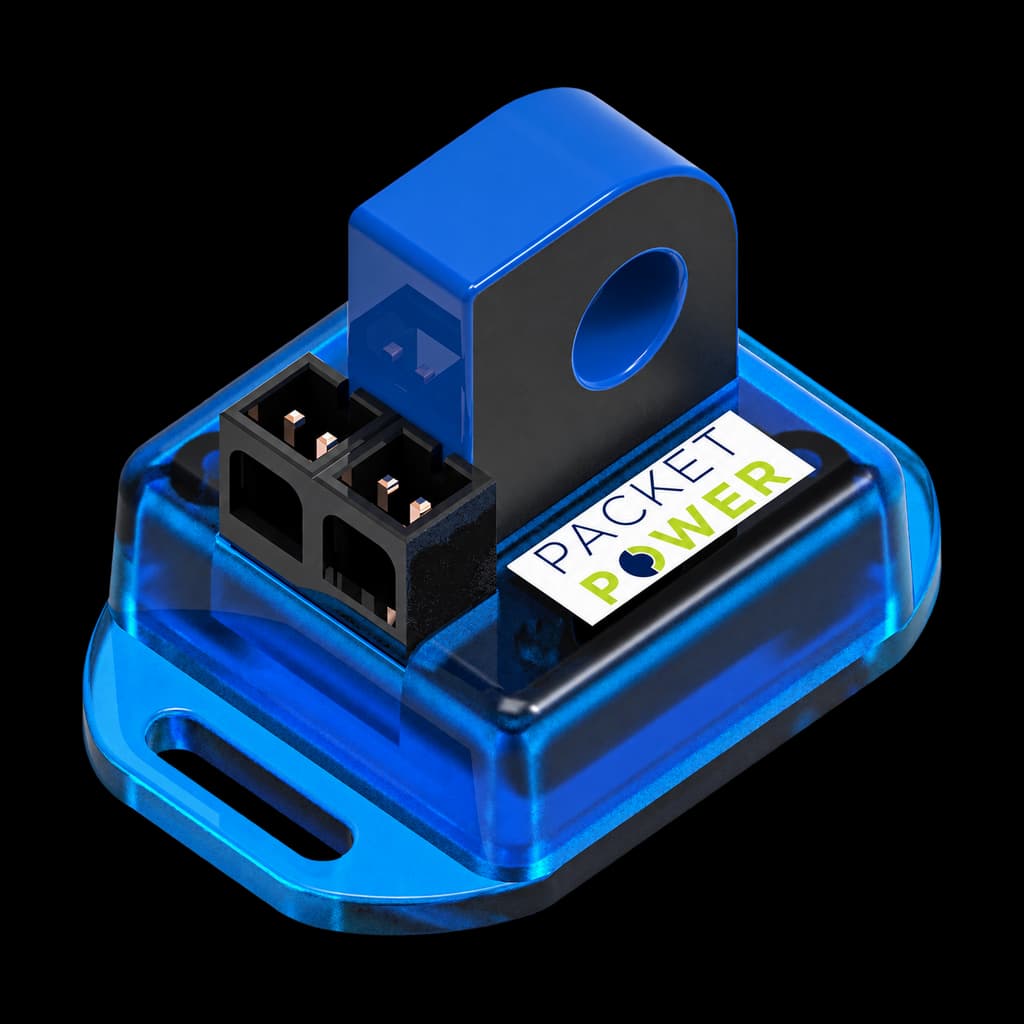

High-Density Power Monitor
Packet Power's High-Density Power Monitor tracks up to 120 circuits with one compact meter. It supports single-phase, split-phase, wye, and delta circuits at 120, 240, or 480 V AC, with current transformers and Rogowski coils available for different conductor sizes and amperages. Wired and wireless connection options send voltage, current, power, energy, power factor, and frequency data to EMX or third-party systems through Modbus, SNMP, MQTT, or BACnet.
Product details
Key features
- One meter monitors up to 120 circuits
- Supports single-phase, split-phase, wye, and delta circuits
- Connects through wired or wireless options
- Fits gangbox and NEMA enclosure options
- Accepts current transformers and Rogowski coils
Key specs
- Circuits per monitor
- Up to 120
- Measurements
- V, A, VA, W, Wh, power factor, Hz, IR pulse output
- Accuracy
- ± 1.0% (CT dependent); ± 0.5% available
- Input voltages
- 120/240/480 V AC
- Current range
- 15 A to 10,000 A
- Circuit types
- Single-phase, split-phase, wye, and delta
- Monitor dimensions
- 106 × 45 × 40 mm (4.2 × 1.8 × 1.6 in)
- Sensor module capacity
- Up to 12 current sensors per module
- Wired protocols
- HTTPS to EMX; Modbus; SNMP V1/V2c/V3; MQTT; BACnet
- Enclosure options
- Double gangbox or NEMA enclosure
