Environmental Monitoring
Packet Power
Environmental Monitoring

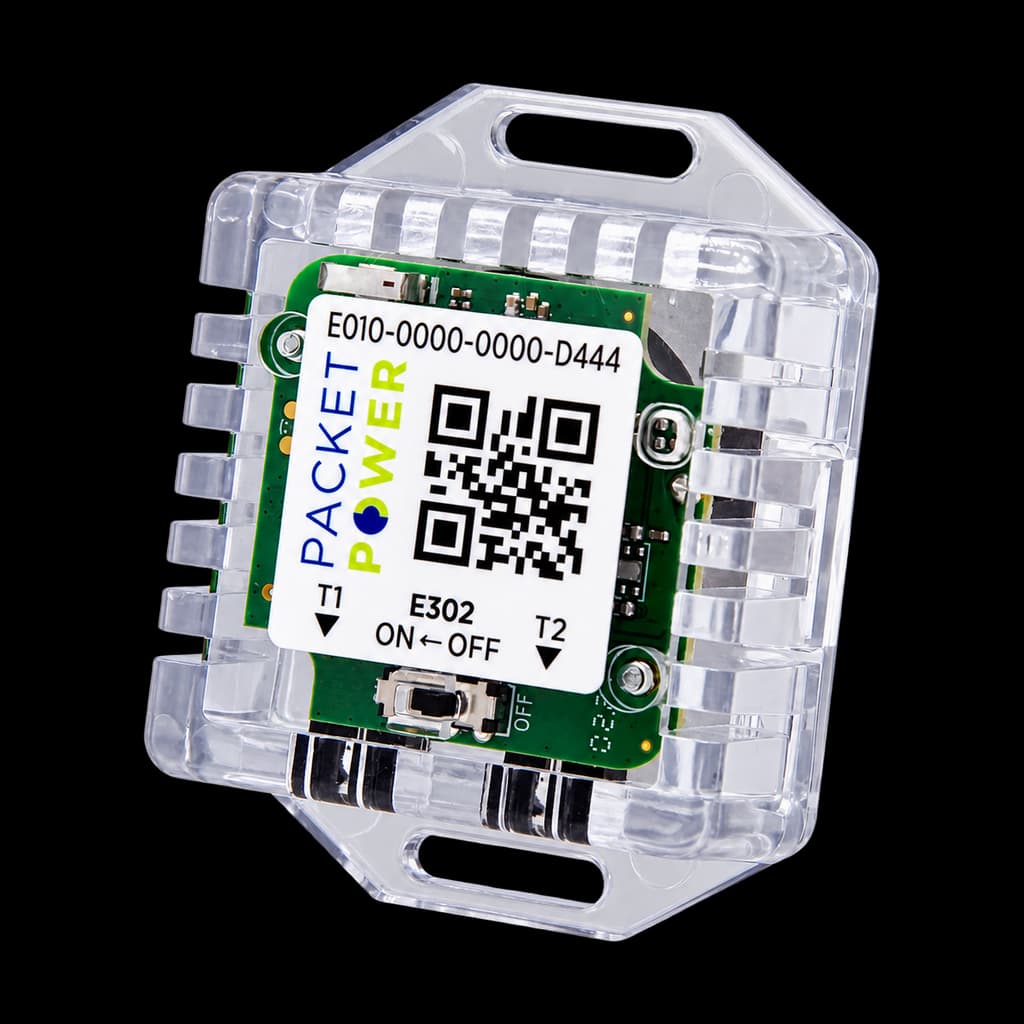

Packet Power Environmental Monitoring combines wireless temperature, relative humidity, dew point, differential pressure, dry-contact, and leak detection devices. E302 monitors provide up to three temperature points from battery power, while E306 monitors provide up to six points, a local display, and AC power or PoE through a splitter. The product sends real-time data across Packet Power's wireless mesh to EMX or third-party BMS and DCIM platforms through standard protocols.
Product details
Key features
- Tracks temperature, relative humidity, dew point, and differential pressure
- Detects conductive fluid leaks across 1 to 30 m sensor lengths
- Supports battery-powered and AC-powered monitor models
- Provides up to six temperature points per monitor
- Connects to BMS and DCIM platforms
Key specs
- Monitoring functions
- Temperature, relative humidity, dew point, differential pressure, dry contact, and leak detection
- Temperature points
- E302: up to 3; E306: up to 6
- Power options
- E302 battery; E306 AC or PoE through a splitter
- Temperature accuracy
- ± 0.3 °C at 0.1 °C resolution
- Temperature probe range
- −34 to 75 °C
- Relative humidity
- 0 to 100% RH at ± 2% RH, 0.1% resolution
- Differential pressure
- ± 125 Pa (± 0.5 in WC); ± 3% full span
- Leak sensor length
- 1–30 m
- Integration protocols
- BACnet, EtherNet/IP, Modbus, and SNMP
- Wireless network
- Frequency-hopping self-configuring load-balancing mesh
- System status
- Local display on E306 models
