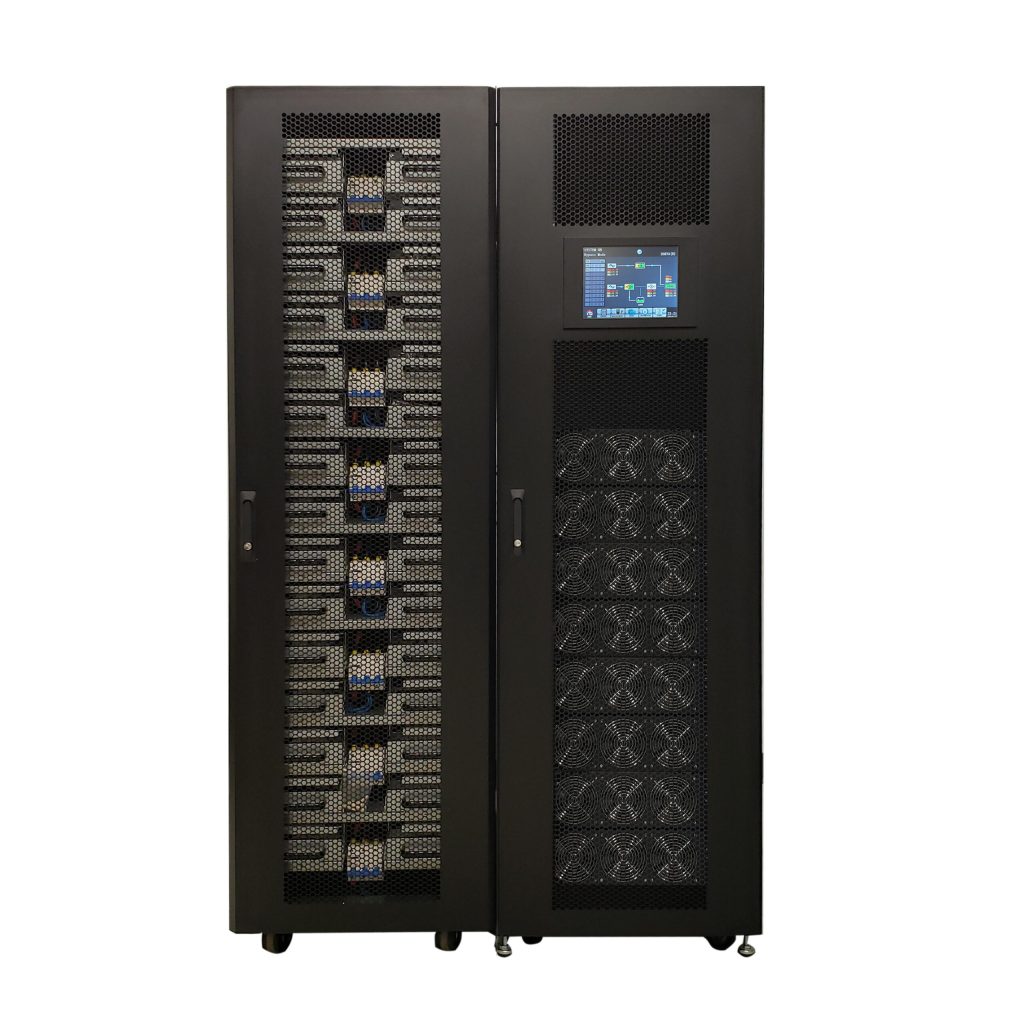

The M90U-140 is a scalable modular online double conversion UPS that protects critical data and equipment from power problems while supplying clean and reliable network grade power.

M90U-140 can be configured with a fully redundant power module and battery modules. Should one module fail, the remaining modules smoothly take over the load. The power modules are independent and can be hot swapped without risk to the critical load.

Product Snapshot

  • Capacities: 15kW, 20kW, 30kW, 40kW, 45kW, 60kW, 75kW, 80kW, 90kW 100kW, 105kW, 120kW, 140kW
  • Unity power factor
  • Hot swappable power and battery modules
  • Up to 98% ECO mode or 94% online efficiency
  • UL-1778 (TUV), cUL (TUV), FCC A, RoHS, TAA
  • 2 year electronics, 2 year battery warranty (USA and Canada)

    Get In touch

    What is 6 + 4 ?


    Specification

    MODEL NUMBERM90U140-20M90U140-40M90U140-60M90U140-80M90U140-100M90U140-120M90U140-140
    INPUTCapacity20kVA (20kW)40kVA (40kW)60kVA (60kW)80kVA (80kW)100kVA (100kW)120kVA (120kW)140kVA (140kW)
     Nominal208/120V, 50/60Hz auto-sensing
     Range121–253VAC* (L-L)
    OUTPUTVoltage208/120VAC
     Frequency50/60Hz ± 0.5Hz
     THD (full load)< 2%
     Efficiency98% ECO mode, ≥ 94% online mode
     Overload capacity105%-110% for 60 min;110%-125% for 10min; 126%-150% for 1min; <150% for 200ms
    UPS PHYSICALDimensions & weight23.6″W x 43.3″D x 79.1″H / 657 lbs + 74 lbs per module
    BATTERY PHYSICALCharge current (max)8A16A24A32A40A48A56A
     Dimensions & weight23.6”W x 43.3”D x 79.1”H / 735 lbs + 85 lbs per module
    ENVIRONMENTTemperature0–40°C (32–104°F)
     Altitude5,200 ft above sea level
     Audible noise< 69dBA at 1m
    APPROVALS UL-1778 (TUV), cUL (TUV), FCC A, RoHS, TAA
    WARRANTY 2 years (USA and Canada)
    COMMUNICATIONS INTERFACE RS-232, EPO, intelligent slot for optional cards (Web/SNMP, Relay, Modbus)
    INCLUDED IN BOX User manual, RS-232 cable, unloading ramp, ViewPower Software
    AVAILABLE OPTIONS External maintenance bypass, 480V input transformer
