50kVA-140kVA

Demo Image
Xtreme Power conversion category

50kVA-140kVA

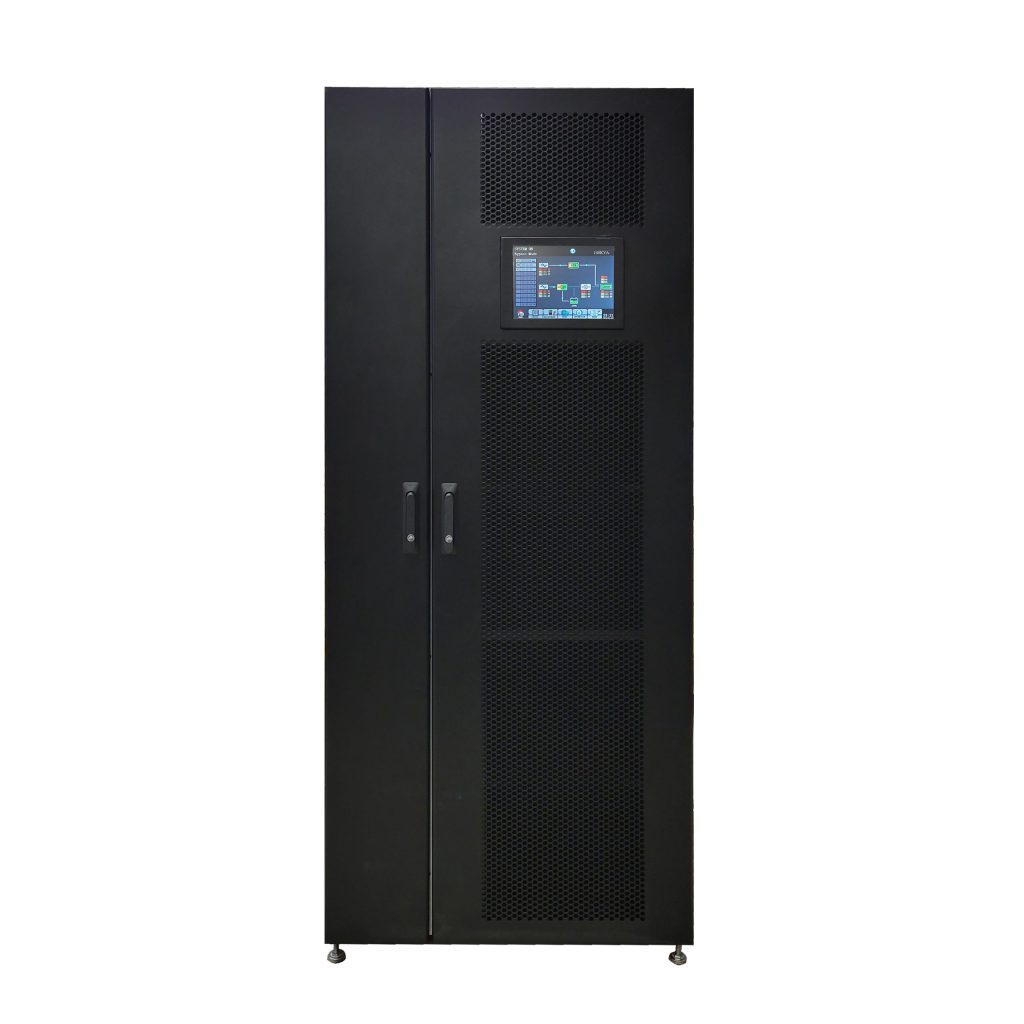

The X90-5S is a scalable modular online double conversion UPS that protects critical data and equipment from power problems while supplying clean and reliable network grade power.

Optional 65kAIC maintenance bypass in slim matching cabinet providing the most compact footprint and reduced installation costs.

Product Snapshot

  • apacities: 50kW, 70kW, 100kW, 140kW, 150kW, 200kW, 210kW, 250kW, 280kW, 350kW
  • 65kAIC Rating
  • Hot swappable power and battery modules
  • UL-1778 , cUL, FCC A, RoHS, TAA
  • 2 years warranty (USA and Canada)

    Get In touch

    What is 3 x 1 ?


    Specification

     MODEL NUMBERX90-5S50kX90-5S70kX90-5S100kX90-5S140kX90-5S150kX90-5S200kX90-5S210kX90-5S250kX90-5S280kX90-5S350k
    CABINET CAPACITYX90-5S UPS: power modulesUp to 350kW (5 x 70kW) or up to 250kVA (5 x 50kW)
     X90-2S UPS: battery modules4, 8, 12, 16 or 20 battery modules
     X90-BC: battery modulesUp to 36 additional battery modules
    INPUTVoltage / frequency nominal480VAC (3W), 50/60Hz auto-sensing
     Voltage / frequency range329 – 520VAC (L-L), 40–70Hz
    OUTPUTVoltage480VAC (4W)
     Frequency40–70Hz
     EfficiencyUp to 96% online mode or 99% ECO mode
     Overload capacity1105%-110% for 60min; 110%-125% for 10min; 126%-150% for 1min; >150% for 200ms
    BATTERY SYSTEMNominal voltage+/-240VDC
    Charge Current (programmable)18A36A54A72A90A
    Dimensions & WEIGHTSUPS & Battery Cabinet (W x D x H)31.5 x 42 x 79 in 787 lbs (UPS) / 23.6 x 42 x 79 in 838 lbs (BC)
     Bypass enclosure (W x D x H)11.8 x 42 x 79 in / 400 lbs
     Power & Battery module (W x D x H)17.2 x 31.2 x 5.25 in / 104 lbs (PM) 17.2 x 31.2 x 5.25 in / 73 lbs (BM)
    ENVIRONMENTOperating temperature0–40°C (32–104°F)
     Audible noise< 69dBA at 1m
     Altitude5,200 ft above sea level*
    APPROVALS UL-1778, cUL, FCC A, RoHS, TAA
    WARRANTY 2 years (USA and Canada)
    COMMUNICATIONS INTERFACE RS-232, EPO, intelligent slot for optional cards (Web/SNMP, Relay, Modbus)
    INCLUDED IN BOX User manual, RS-232 communication cable, USB cable
    AVAILABLE OPTIONS External Maintenance bypass, Battery Temperature Sensor
