FirstLine P 924

Demo Image
Emergency Lighting Inverters

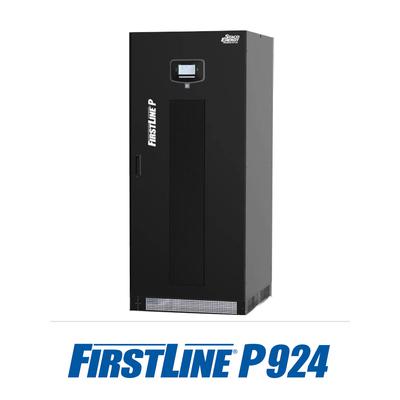

FirstLine P 924

58.5-225 kW
Three Phase, On-Line Double Conversion, UL924 Central Lighting Inverter

Emergency Lighting System
FirstLine® P 924 is the result of your demand for an Emergency Lighting solution tailored to meet your requirements for a reliable, cost effective alternative for Emergency Lighting applications that help ensure the safety of your most important asset — your people. FirstLine® P 924 provides that solution with its easy-to-manage double conversion power electronics and battery system and its rugged all steel construction.
What is an Emergency Lighting Inverter?
The National Fire Protection Association (NFPA) has written Life Safety Code® (NFPA 101®*) that defines the requirements for emergency lighting for means of egress. The standard requires that emergency illumination shall be provided for not less than 1-1/2 hours (90 minutes) in the event of failure of normal lighting.  Installation and testing requirements are written in the National Electric Code® (NFPA 70®*). The FirstLine® P 924 is a central system battery back-up to meet these requirements. In the event of an AC power failure, FirstLine® PL 924 automatically supports the connected lighting loads on battery power and will continue  to provide power without any interruption for a full 90 minutes.  When the utility power returns to normal, FirstLine® P 924 will automatically recharge the batteries to be ready for the next power disturbance. In addition to meeting life safety requirements, the FirstLine®P 924 can also increase the life expectancy of the protected lighting system and reduce long-term cost of ownership.

Features

  • Up to 98% Efficient
    • Lower energy costs and carbon footprint
  • Compact & Reliable
    • Requires either front, top or bottom access, so it can be placed against a wall to minimize footprint
    • Cooler operation extends internal component life
  • AC Input Performance
    • High input power factor of 0.99
    • Low input current distortion of  <= 3%
    • Power walk-in function that ensures progressive rectifier start-up
  • IGBT and Digital Signal Processor (DSP)
    • Reduces the impact of the ELS on the local supply
    • Simplifies installation where there is limited power capacity in the form of available electrical supply rating or generator size
  • Dual input
    • Main power and secondary emergency standby power increase resilience of single or parallel system configuration
  • High Performance Filter
    • Protects upstream power supply sources from harmonics and reactive power generated by the loads power
  • Menu Select Display
    • User friendly display is easy to see and intuitive to use
  • Worldwide Service Program
    • Factory trained service personnel maximize equipment life
    • Full start-up service & preventive maintenance lowers cost of ownership
  • Full Two Year Warranty
  •

Application

  • Data Centers
  • Computer Networks
  • Hospitals/Medical
  • Education/Research
  • Laboratories, Bio-Tech
  • Theaters
  • Dorms
  • Parking Structures
  • Sport Stadiums
  • Public Buildings
  • Commercial and Industrial Facilities
  • Infrastructure Systems
  • High Security Areas
  • Single Point of Power Protection
