FirstLine PLT/PPC

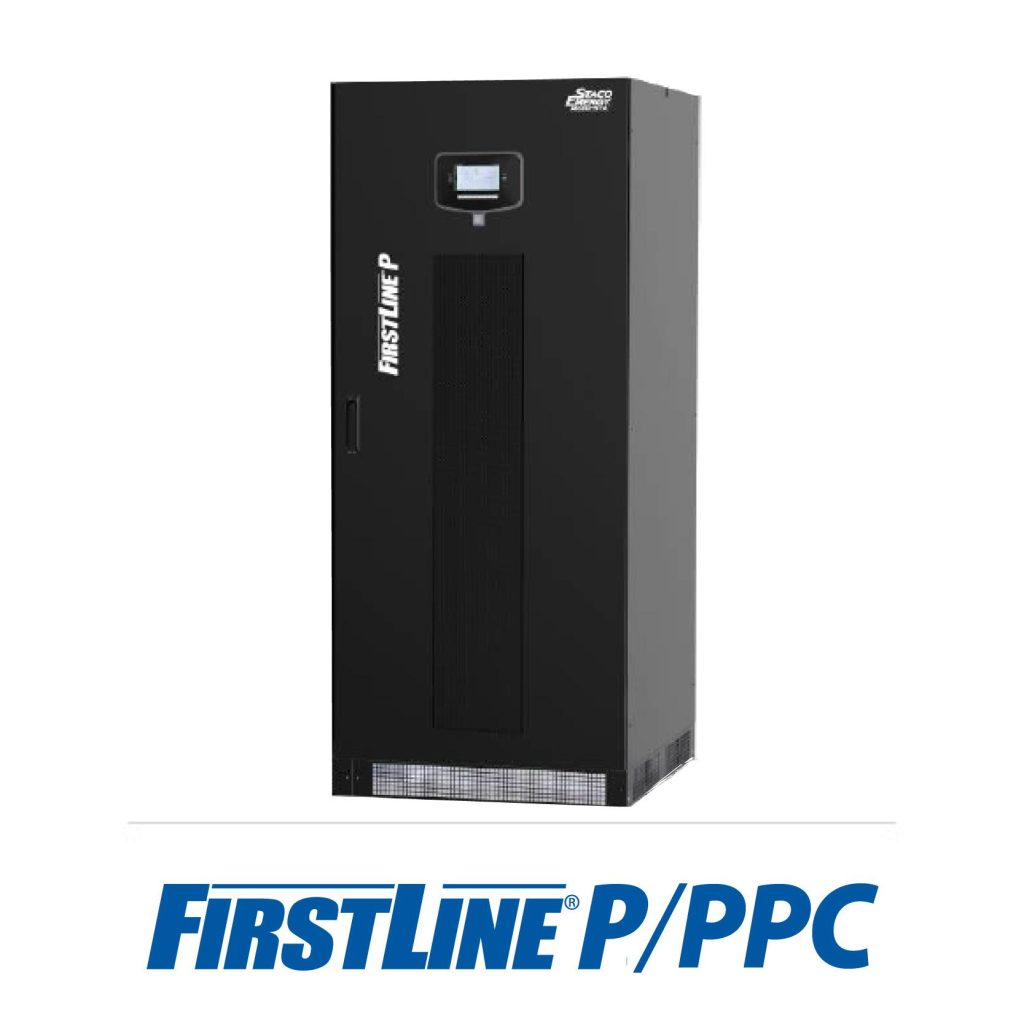

FirstLine P/PPC

Electronic Precision Power Conditioner 208 and 480 VAC, 65-500 kVA
Continuous voltage correction and conditioning providing clean regenerated waveform.

Provides the clean, regulated precision power for all your sensitive loads. Protects your application from sags and surges that would normally damage your expensive devices. The PPC has an input range of +15% /-10% with fast response to voltage fluctuations while maintaining the output within +/- 1%.

Features

  • Up to 98% Efficient
    o    Lower energy costs and carbon footprint
  • Compact & Reliable
    o    Requires either front, top or bottom access, so it can be placed against a wall to minimize footprint
    o   Cooler operation extends internal component lifeCooler operation extends internal component life
  • AC Input Performance
    o    High input power factor  of 0.99
    o    Low input current distortion of <= 3%
    o    Start Power walk-in function that ensures progressive rectifier start-up
  • IGBT and Digital Signal Processor (DSP)
    o    Reduces the impact of the PPC on the local supply
    o    Simplifies installation where there is limited power capacity in the form of available electrical supply rating or generator size
  • Dual Input
    o    Main power and secondary emergency standby power increase resilience of single or parallel system configuration
  • High Performance Filter
    o    Protects upstream power supply sources from harmonics and reactive power generated by the loads power
  • Menu Select Display
    o    User friendly display is easy to see and intuitive to use
  • Upgrades to a UPS
    o    When your application  changes, simply add batteries with no major re-wire required
  • Frequency Conversion
    o    All units can be set as a 50/60 hZ Frequency Converter
  • Nationwide Service Program
    o    Factory trained service personnel maximize equipment life
    o    Full start-up service & preventive maintenance lowers cost of ownership
  • Full Two Year Warranty

Application

  • Data Centers
  • Telecommunications
  • Manufacturing
  • Broadcast
  • Commercial
  • Industrial
  • Marine
  • Medical
  • Mobile
