Branch Circuit Monitors

Demo Image

Full Power Branch Circuit Monitors

Measure V, A, VA, W, PF, Wh, THDi, THDv, Hz

Monitor 100V to 480/277V circuits

Support any combination of single and three-phase circuits

Can be wall-mounted, directly attached, or installed under the floor

Branch Circuit Monitors

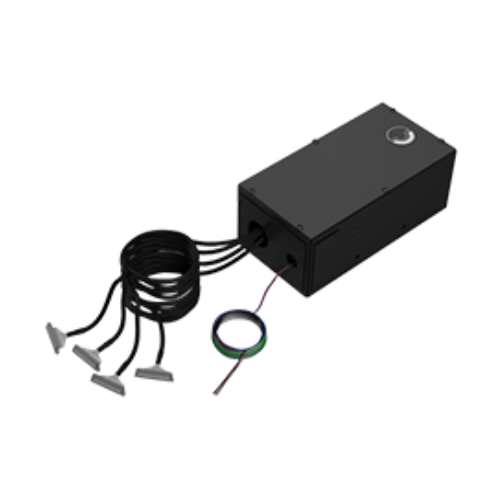

BGS16

310 x 160 x 115 mm
(12.2 x 6.3 x 4.5 in)
Supports 30–64 CTs
Great option for the following panels:
30-pole side-by-side
42/48 pole side-by-side
Inline panel up to 64 CTs

Branch Circuit Monitors

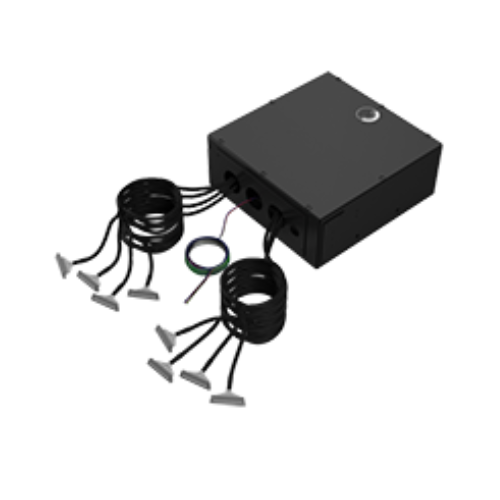

BGP128

310 x 302 x 115 mm
(12.2 x 11.9 x 4.5 in)
Supports 65–128 CTs
Great option for the following panels:
Two 42/48-pole side-by side
Inline panel up to 128 CTs

Branch Circuit Monitors

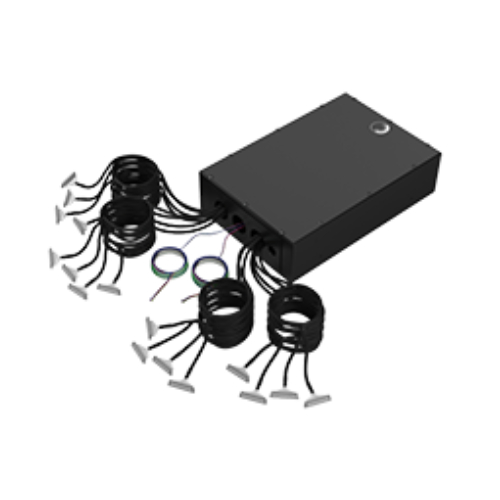

BGP192

445 x 302 x 115 mm
(17.5 x 11.9 x 4.5 in)
Supports 129 - 192 CTs
Great option for the following panels:
Three 42/48 pole side-by-side
Four 42/48 pole side-by-side
Multiple inline panels up to 192 CTs

Current Only Branch Circuit Monitors

Measure A and Ah (optional full power monitoring on infeed circuits)

Monitor 100V to 277V branch circuits (100V to 480/277 on optional infeed circuits)

Single phase branch circuits

Can be wall-mounted, directly attached, or installed under the floor

Branch Circuit Monitors

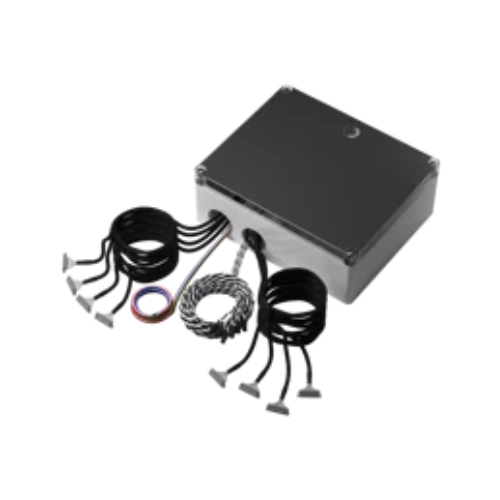

BGP51

265 x 185 x 96 mm
(10.4 x 7.3 x 3.8 in)
Supports up to 48 current-only CTs
Up to 3 full power infeed CTs optional
Great for 42/48-pole
side-by-side panel

Branch Circuit Monitors

BGP198

341 x 281 x 130 mm
(13.4 x 11 x 5.1 in)
Supports 49 - 192 current-only CTs
Up to 6 full power infeed CTs optional
Great option for the following panels:
Two 42/48-pole side-by side
Four 42/48 pole side-by-side
