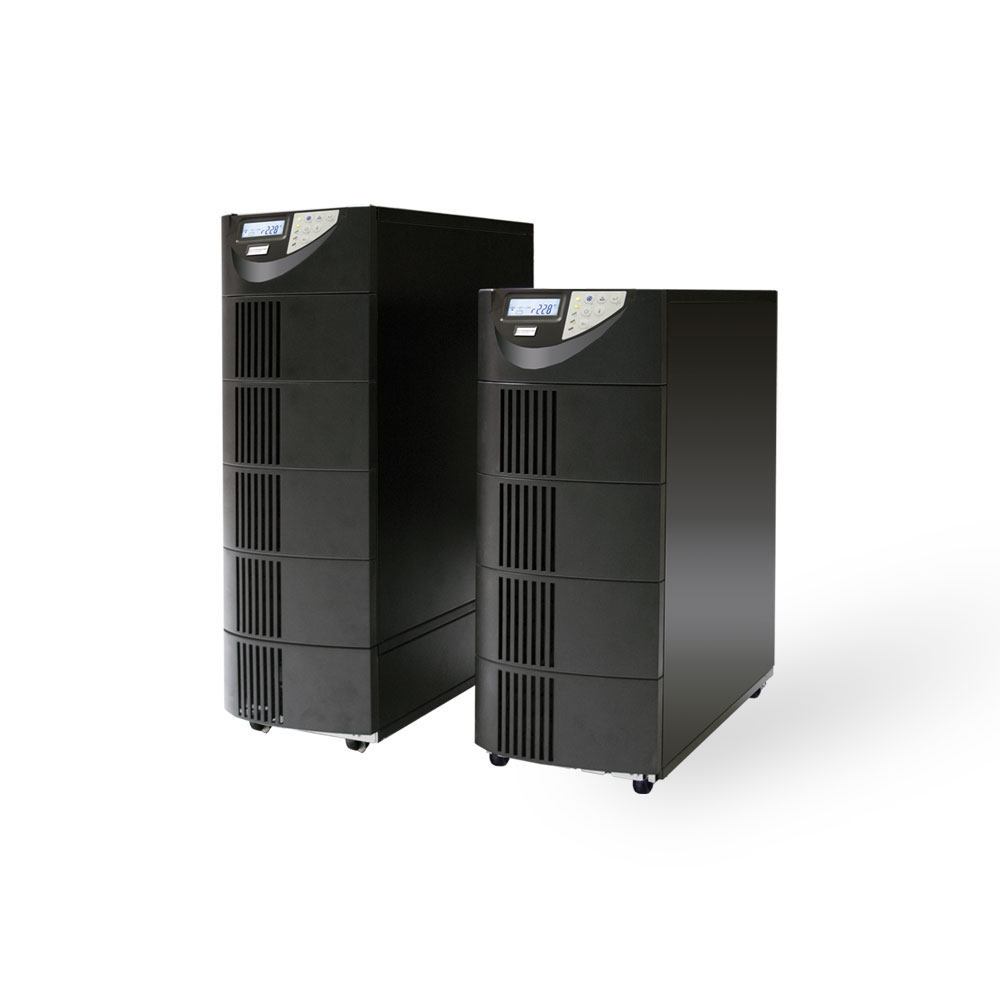

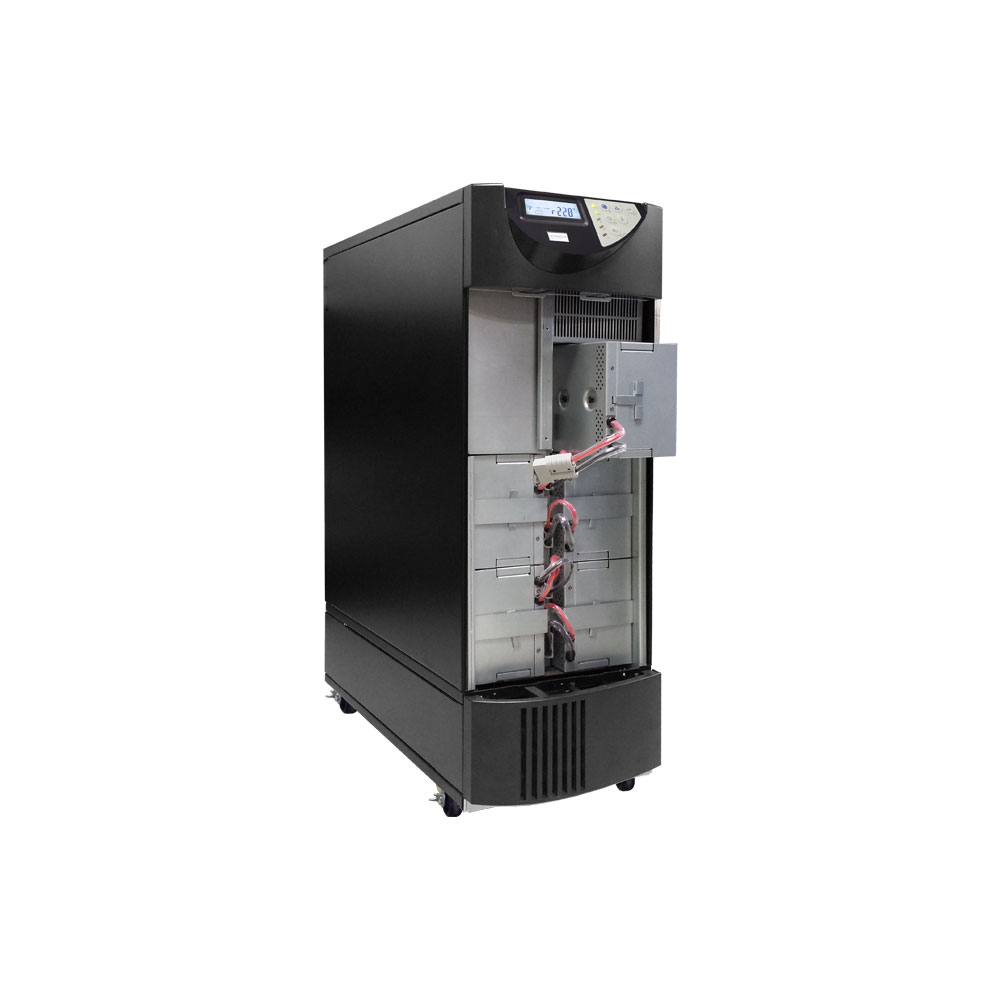

TX90 6kVA & 10kVA Isolated Online UPS

Demo Image

TX90 6kVA & 10kVA Isolated Online UPS

Isolated online UPS provides the cleanest power in the most demanding conditions. The TX90 galvanic isolation transformer prevents common mode noise which is left exposed by typical transformerless online designs. Isolated online applications include retail, industrial environments, laboratories, and any installation with grounding or noise issues. TX90 provides dual output voltages and programmable output frequency to meet a wide range of requirements.

Product Snapshot

  • Available models: 6kVA/5.4kW, 10kVA/9kW
  • Optional battery runtimes up to 8 hours
  • Up to four TX90 units can be paralleled for additional capacity or redundant operation
  • Optional 580W internal batteries (XR models) and external battery cabinets and chargers can be added for extended runtime applications
  • UL1778, cUL, FCC Class A, RoHS
  • 3 years electronics, 3 years battery warranty (USA and Canada)

    Get In touch

    What is 8 + 4 ?


    Specification

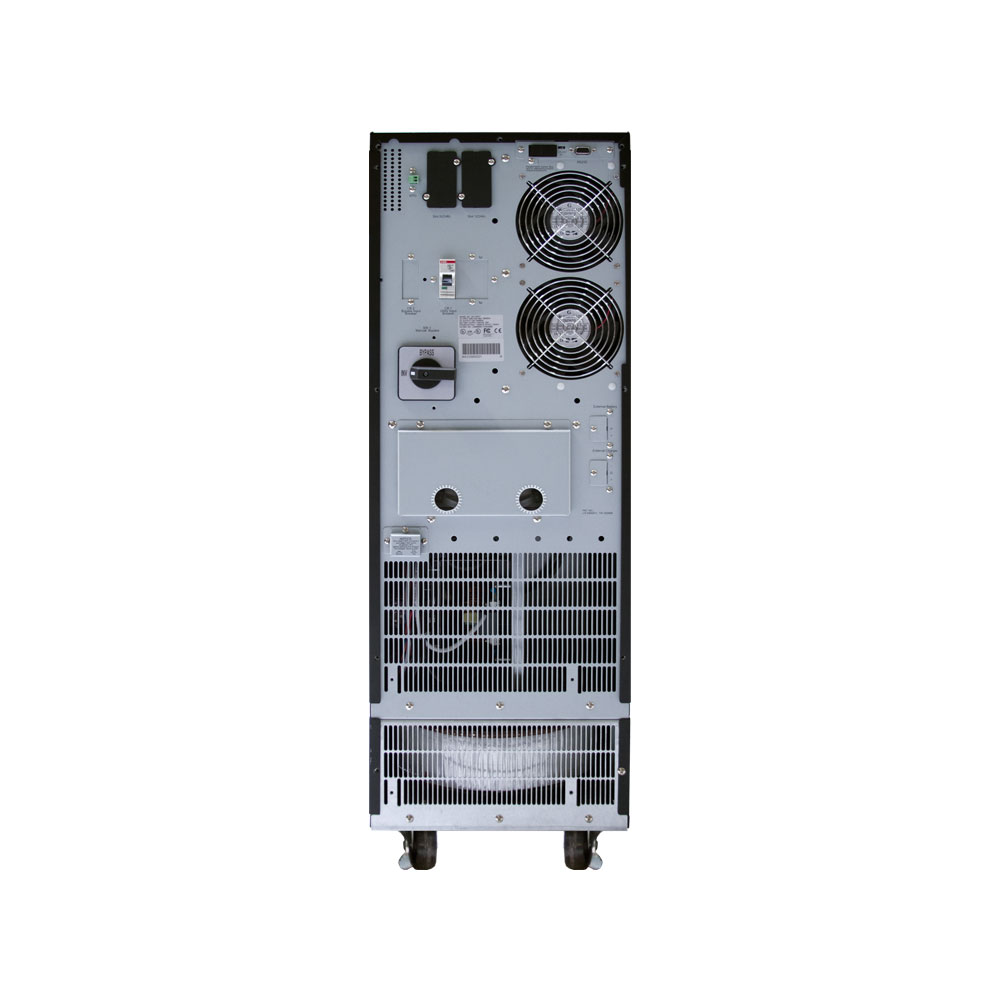

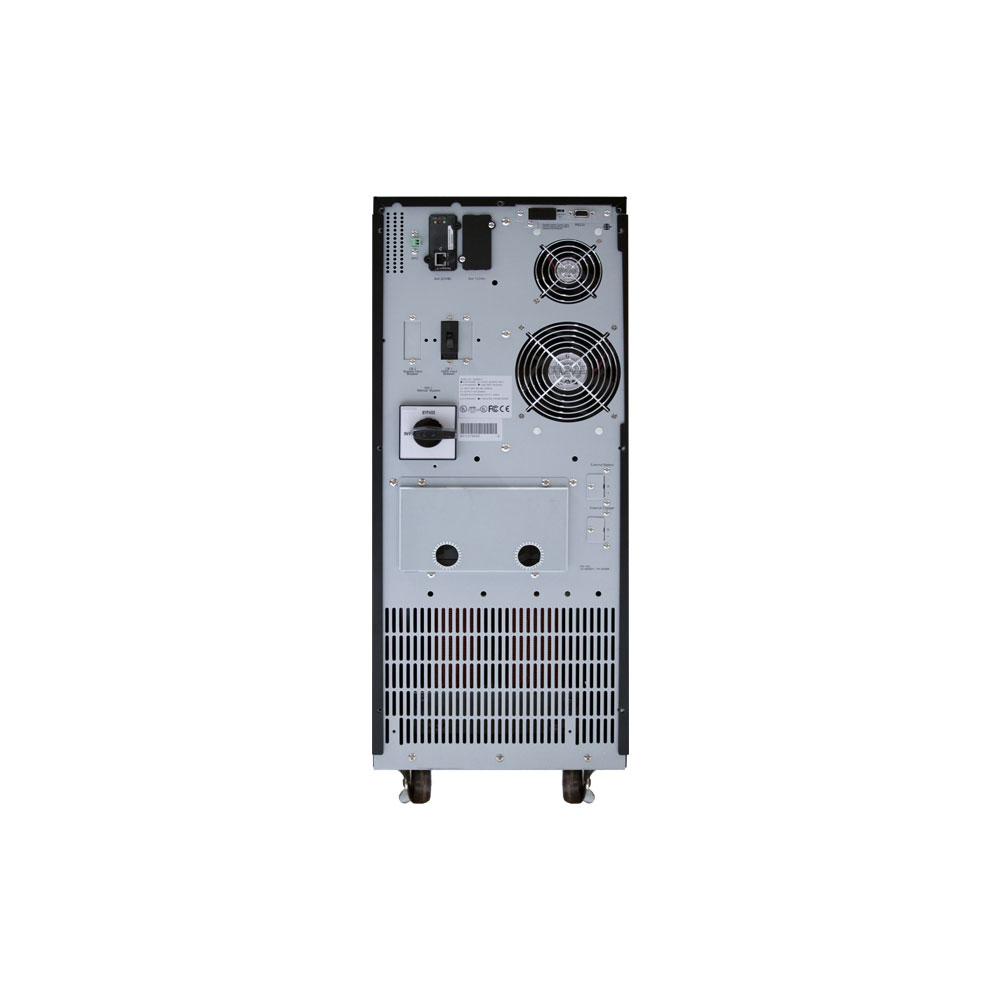

     MODEL NUMBERTX90-6KTX90-10K
    INPUTCapacity6kVA (5.4kW)10kVA (9kW)
     Voltage (nominal)208VAC (200VAC, 220VAC, 230VAC, 240VAC optional)
     Frequency45–65Hz auto-sensing
     Power factorUp to 0.99 at linear load
     Harmonic distortion< 3% at linear load
    OUTPUTVoltage240/120VAC or 208/120VAC* standard (other optional voltages available)
     Crest factor3:1
     Overload capacity105%–150% for 160 sec, 2 cycles before switching bypass
     Efficiency97% ECO mode, 91% online mode
    BATTERYBattery typeSealed, maintenance-free lead acid
     Battery (standard models)(20) 12V 7AH(20) 12V 9AH
     Battery (XR models)(20) 12V 580W(20) 12V 580W
    PHYSICALInput/outputTerminal blocks or optional PDU
     Dimensions (W x D x H)11.4 x 25.4 x 29.5 in11.4 x 25.4 x 34.7 in
     Weight265 lbs340 lbs

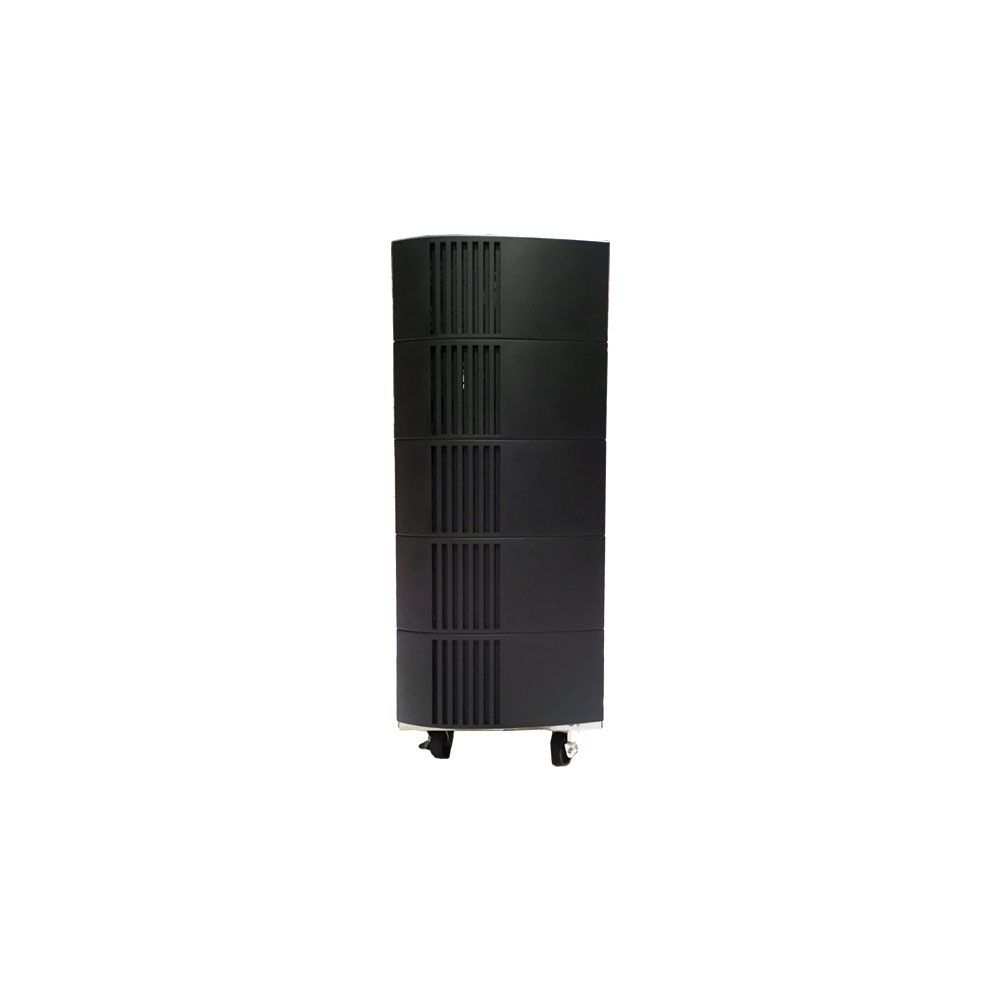

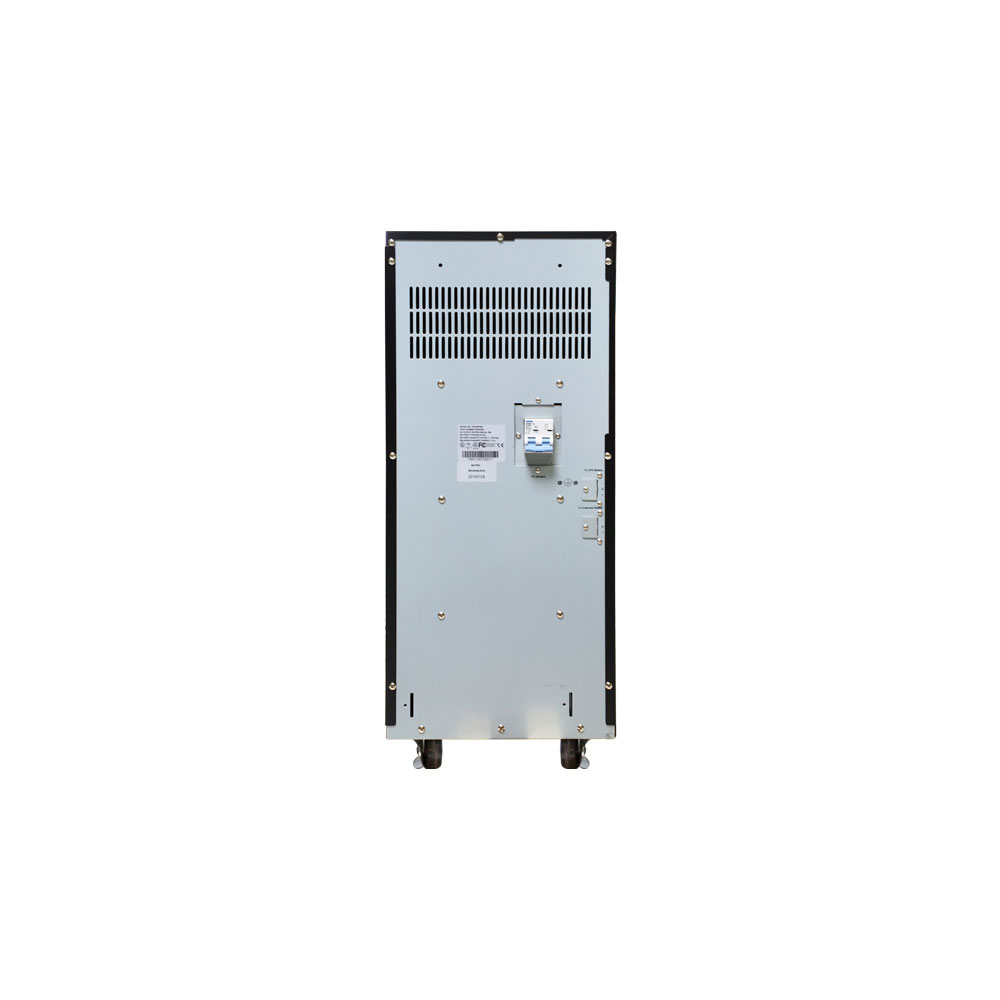

    OPTIONAL BATTERY PACKSBattery quantity and sizeEBP920–(20) 12V 9AH; EBP940–(40) 12V 9AH; EBP960–(60) 12V 9AH
     Dimensions (W x D x H)11.4 x 25.4 x 29.5 in
     WeightEBP920–254 lbs; EBP940–364 lbs; EBP960–474 lbs

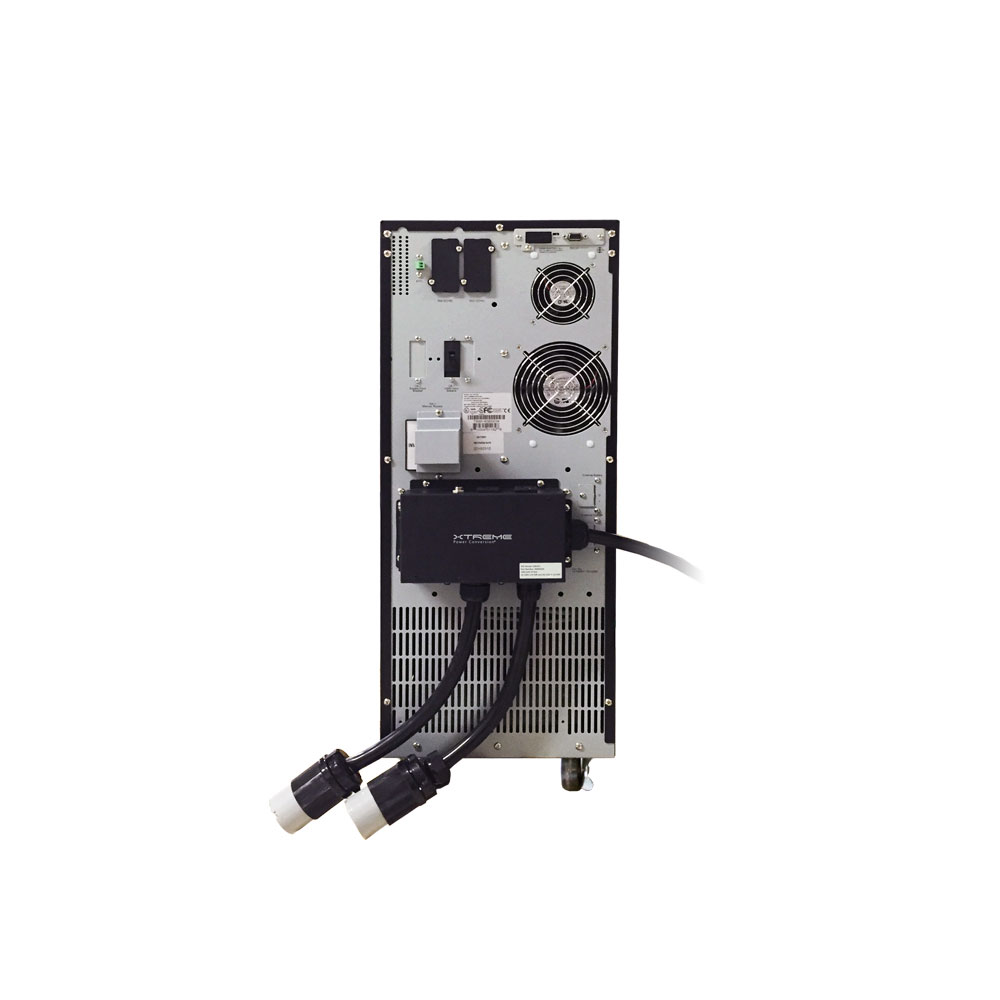

    OPTIONAL PDUInput connection6 ft, L6–30PTerminal blocks
     120V Receptacle options5–15/20R, L5–15R, L5–20R, L5–30R, L14–30R, C19
     240V Receptacle optionsL6–30R, L6–20R, L6–15R, 6–15/20R, L14–30R, C19
    ENVIRONMENTTemperature32–104°F (0–40°C)
     Humidity0–95% non-condensing
     Audible noise< 50dBA
     Altitude11,500 ft above sea level
    APPROVALS UL1778, cUL, FCC Class A, RoHS
    WARRANTY 3 years electronics, 3 years battery warranty (USA and Canada)

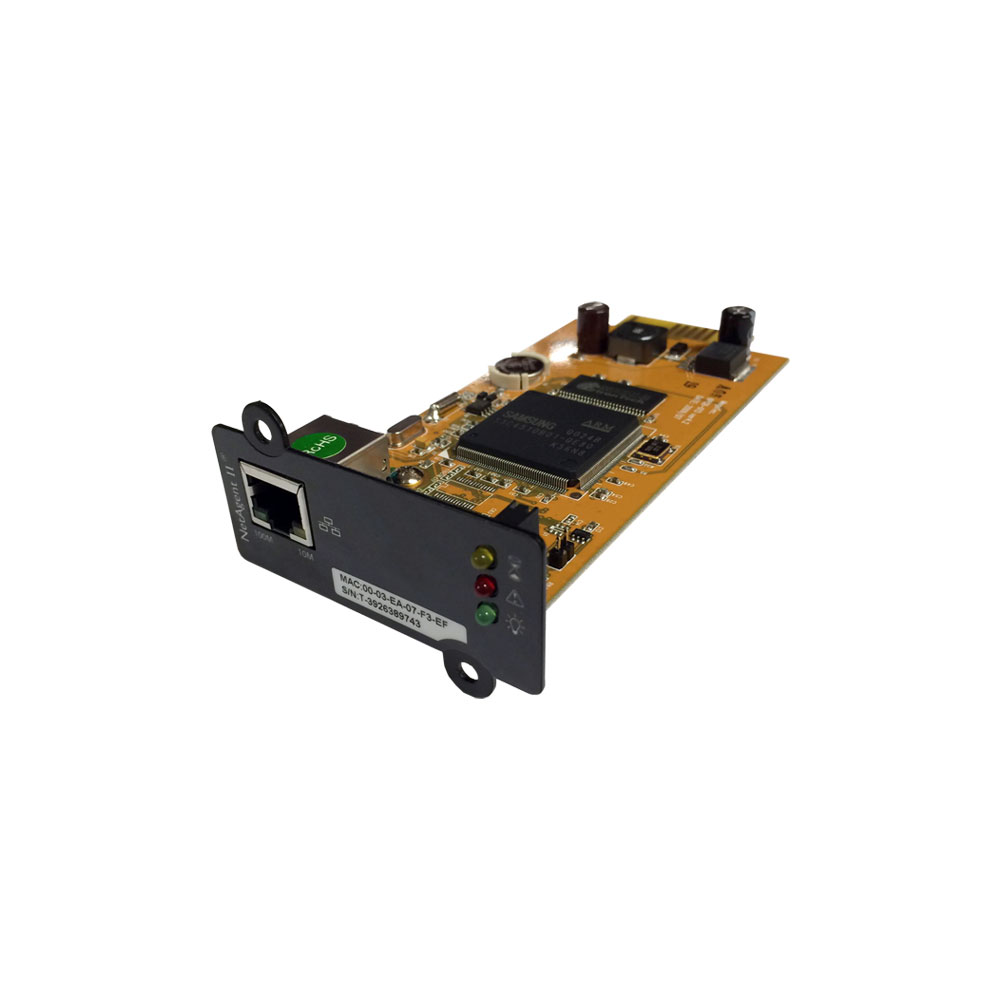

    COMMUNICATIONS INTERFACE RS-232, EPO, intelligent slot for optional cards (Web/SNMP, Relay/dry contact)
    INCLUDED IN BOX User manual, RS-232 communication cable, shutdown software

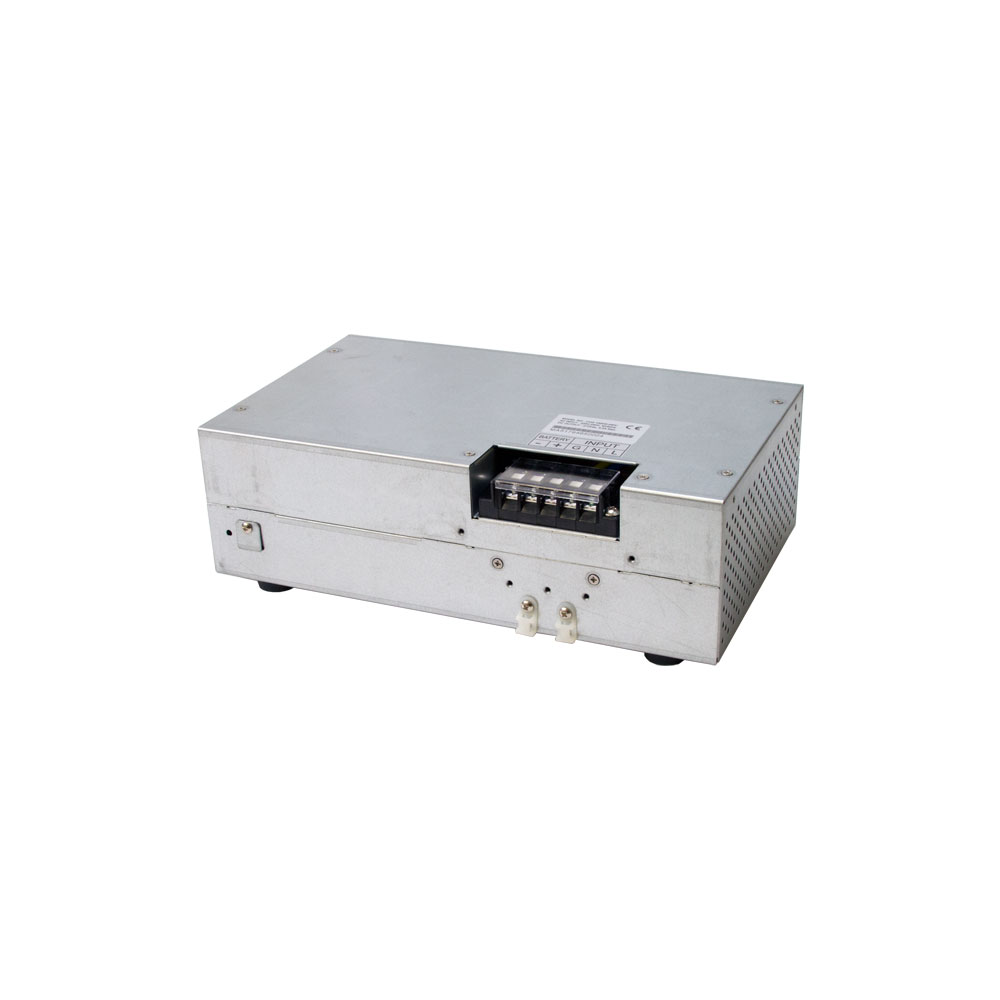

    AVAILABLE OPTIONS Output PDU, external battery charger, parallel tie/bypass, input L6–30P cord (for 6kVA only)


    *208/120VAC output consists of one leg of 120V and one leg of 88V.
